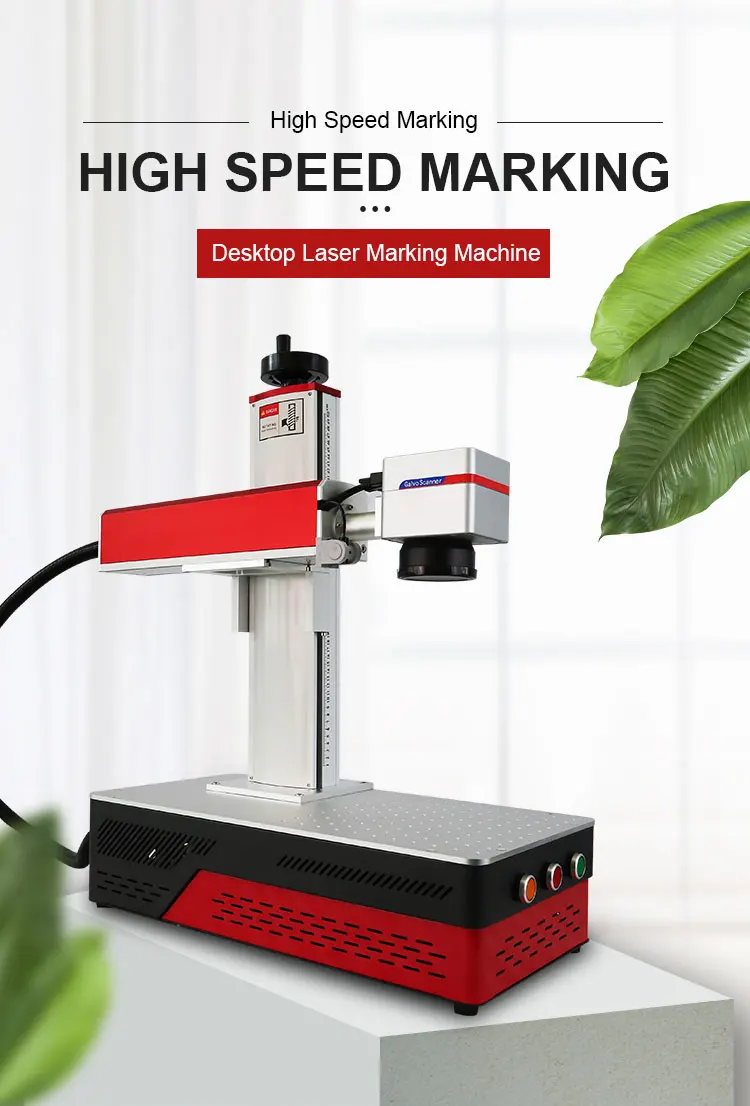

Desktop Mini Fiber Laser Marking Machine All In One MAX Raycus JPT 20W 30W 50W With Rotary Axis

Name: Desktop Mini Fiber Laser Marking Machine All In One MAX Raycus JPT 20W 30W 50W With Rotary Axis
Brand: RATTM MOTOR
Price: 1014 USD

Wholesale Desktop Mini Fiber Laser Marking Machine All In One MAX Raycus JPT 20W 30W 50W With Rotary Axis from china suppliers

Brand Name : RATTM MOTOR

Model Number : FDF10

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD1014-2540/unit

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 300units/Month

Delivery Time : 5-8 work days

Packaging Details : Wooden case 70*43*42cm

Product Catalog : Laser marking machine

Frequency of pulse : RAYCUS/MAX is 20-100 KHz JPT LP is 1-600KHZ JPT M7 is 1-4000KHZ

Marking Content : Text, pattern, date, bar code, etc

Laser Wavelength : RAYCUS/MAX is 10.64 um JPT is 1064 um

Resolution Ratio : 0.1 mm

Graphic Format Supported : BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.

Marking Speed : less than 4000 mm/s(RC1001) (it can change to SG7110 , 8000mm/s ,price is higher US$150)

Repeatability Accuracy : +-0.002 mm

Control Software : EZCAD ENGLISH Control Software

Minimum Character : 0.15 mm

Contact Now

JPT LP Max Raycus Fiber Laser Marking Machine 20w 30w 50w Laser Engraver
Metal Cards Stainless Steel Gold Silver Engraving Machine

Note:
We have two vision main board for this machine, BJJCZ for EZCAD
software and BSL for Lightburn software which is optional, pls choose
the one you want when you place the order.

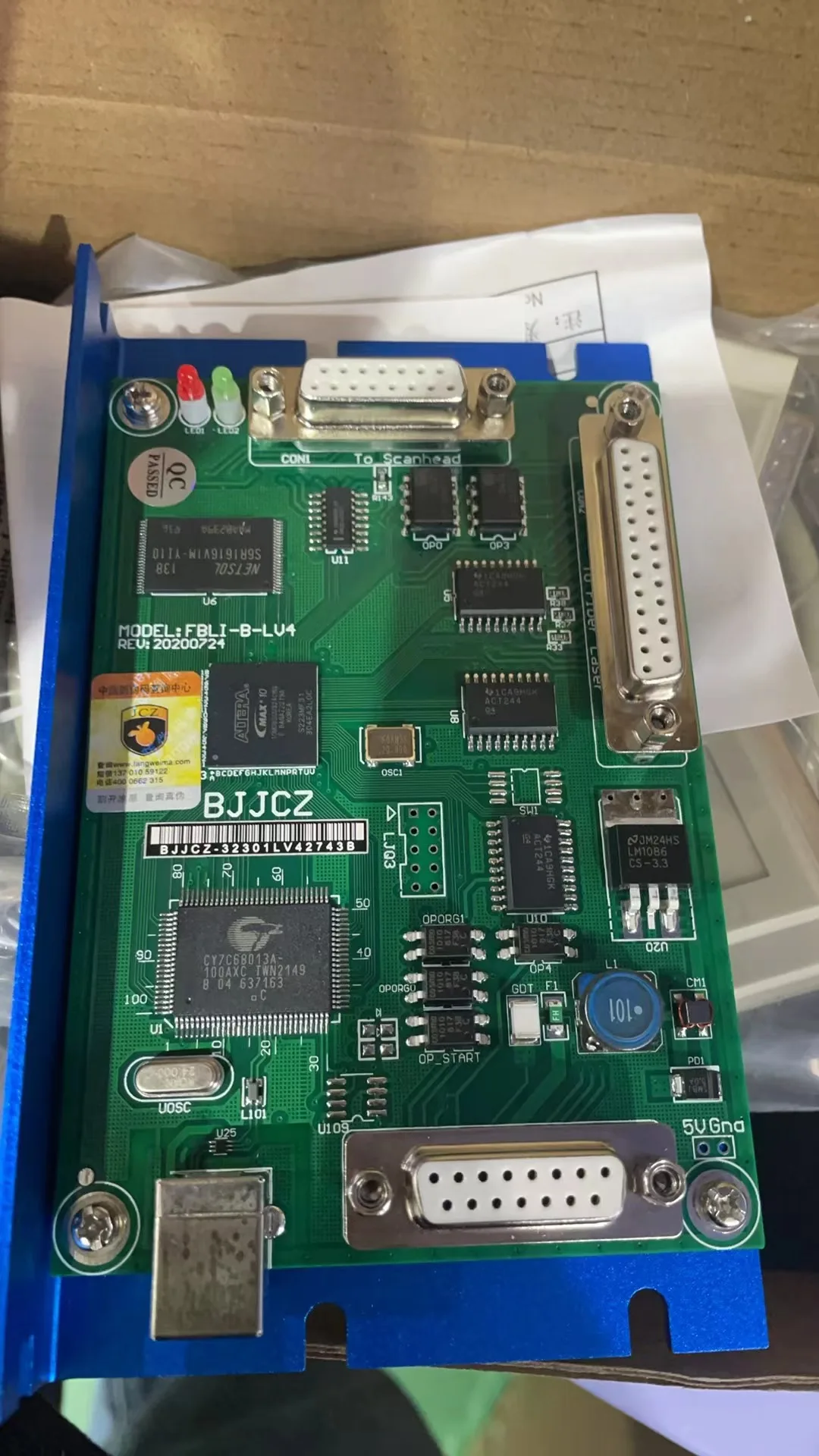

BJJCZ Main Board Real Pic:

BSL Main Board Real Pic:

Package include:

1 Set 30W Raycus Fiber Laser Marking Machine(Desktop Type with RC1001 Galvo)

2 Sets Rotary Axis(D80+D300 Axis )

2 Piece Filed lens(150*150mm+110*110mm)

1 Pcs U Disk (USB)

1 Pcs Data Line
1 Software Ezcad2

1 Set Foot Switch

1 Set Assembly Tools

4 pcs Fixed Sheet Metal

1 Set Power Cable

10 Pcs Metal Card

Tips: If you want to use the rotation, then we suggest you choose the lens
not bigger than 200*200mm, or it will cause the focal length is not
enough.

Note: The marking area is optional : 50x50/70x70/110x110/150x150/200x200/220x220/300x300mm,

we ship 150x150mm lens as default, buyer can also choose other size after placing the order,)

Technical Parameter

Model
Laser power	20W/30W/50W/60W Raycus /MAX/JPT (optional)

Field Mirror(Work Area)	150150mm( 5050mm / 7070mm / 110110mm / 150150mm / 175175mm / 200200mm / 300300mm Optional. Support extra purchase.)
Cooling Mode	Air Cooling
Laser Wavelength	RAYCUS/MAX is 10.64 um JPT is 1064 um
Frequency of pulse	RAYCUS/MAX is 20-100 KHz JPT LP is 1-600KHZ JPT M7 is 1-4000KHZ
Marking Depth	≤0.3 mm
Marking Speed	≤4000 mm/s(RC1001) (it can change to SG7110 , 8000mm/s ,price is higher US$150)
Marking Lines	1-10 lines
Minimum Line Width	0.01 mm
Minimum Character	0.15 mm
Repeatability Accuracy	±0.002 mm
Resolution Ratio	0.1 mm
Marking Content	Text, pattern, date, bar code, etc
Operation System	Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10
Control Software	EZCAD ENGLISH Control Software
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power	≤0.9 KW
Operation Temperature	5°C-40°C
Relative Moisture	≤ 90%, no fog
Dimensions(LWH)	95 x 78 x 55 cm
Power supply requirements	220 V or 110V
Weight	40KG
Warranty	24 months

How to choose lens

With Same Lens , The Higher Power , The Deeper Engrave .

With Same Power, The Smaller Lens, The Deeper Engrave ,

Bigger Lens Engrave Bigger Area ,

Smaller Lens Engrave Deeper Depth,

if
20w laser choose 200mm*200mm lens , that means your focus distance is
very tall ,power come to mark object is cery very weak , so not biggest
lens area is best ,but choose suitable lens.

20w choose 70mm*70mm , 110mm*110mm,

30w choose 70mm*70mm , 110mm*110mm , 150mm*150mm

50w choose 70mm*70mm , 110mm*110mm ,200mm*200mm
